Product Details:
|
| Application: | Bonding Polypropylene Fabrics, Non-woven Fabrics, Sponge Foam, Paper Wood And Other Materials | Appearance: | Transparent |
|---|---|---|---|
| Melting Range (℃): | 65-80 | Ironing Temperature (℃): | 90-120 |
| Pressure (MPa): | 0.1-0.3 | Customizable Thickness Range (mm): | 0.03-0.40 |
| Customizable Wide Range（mm）: | 5-1500 | ||
| Highlight: | Briture EVA hot melt adhesive film,polypropylene EVA hot melt adhesive film,polypropylene hot melt adhesive eva |
||

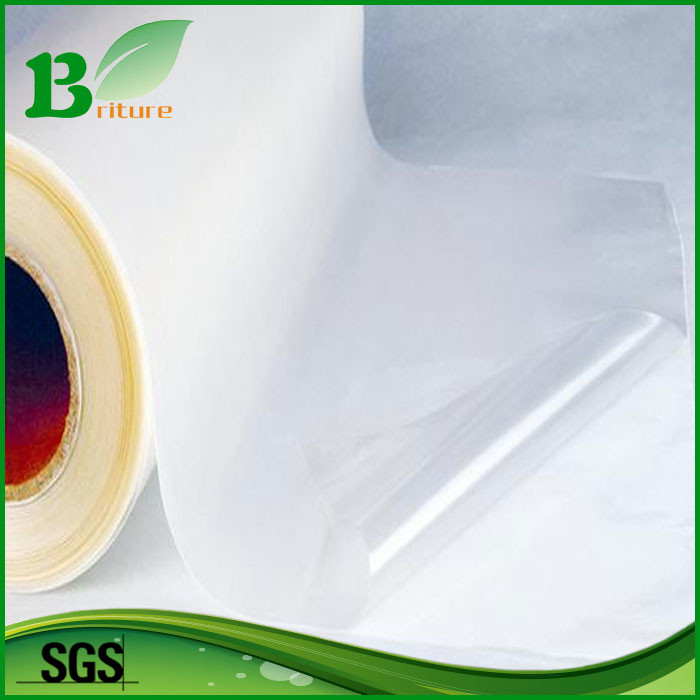

EVA hot melt film BEVA-90
Hot-melt adhesive film, also called hot-melt double-sided adhesive, is a film-like hot-melt adhesive product that can be easily laminated. It is a two-layer structure with a layer of release paper on the back of the film. It has different types of ingredients, and hot melt adhesive films of different ingredients have different properties and application fields.
The composition of BEVA-90 hot melt adhesive film is EVA (vinyl acetate copolymer). It has a
low-temperature melting point, soft to the touch and full of elasticity, but poor washing resistance. It is more suitable for bonding polypropylene fabrics, non-woven fabrics, sponge foam, paper wood and other materials, and is widely used in home textile interiors, industrial products and daily necessities. The product has passed the RoHS 2.0 test of SGS company.
Applicable bonding materials:
Applicable fields:
Characteristic:
|
Technical Data Sheet |
||||
| Product name | Hot melt adhesive film | |||
| Model | BEVA-90 | |||
| Ingredient | EVA(Vinyl Acetate Copolymer) | |||
| Color/shape | Transparent/film | |||
| With release paper | YES | |||
| Melting range (℃) | 65-80 | |||
| Melt Index g/10min (190℃*2.16kg) | 25±5 | |||
| Density(g/cm3) | 0.95-0.99 | |||
| Customizable thickness range (mm) | 0.03-0.40 | |||
| Customizable wide range(mm) | 5-1500 | |||
| Customizable length of each roll(meters) | 5-500 | |||
|
Recommended use parameters |
Use temperature(℃) | 90-120 | ||
| Ironing pressure(MPa) | 0.1-0.3 | |||
| Ironing time(s) | 10-30 | |||
| Washability | ☑Poor | □Good | □Great | |
| Dry cleaning resistance | ☑Poor | □Good | □Great | |
| Elastic force | □NO | ☑YES | □Great | |
| Characteristic | Stretchy, soft | |||
| CAS: | / | |||
|
HS code: |
3506100090 Adhesives category | |||
| 3920690000 films category | ||||
1.Place the adhesive side of the hot melt adhesive film with the material to be bonded, with the release paper side facing up, and the order of placement is: release paper layer/adhesive film layer/material to be bonded1.
2. Use a relatively low temperature to heat the release paper side to make it adhere.
3. After cooling, peel off the release paper.
4. Align the glued material 1 with the material on the other side (material 2) that needs to be bonded. The placement sequence is: material 1 / hot melt adhesive layer / material 2, and then use ironing equipment to bond, that is, the bonding industry is completed.

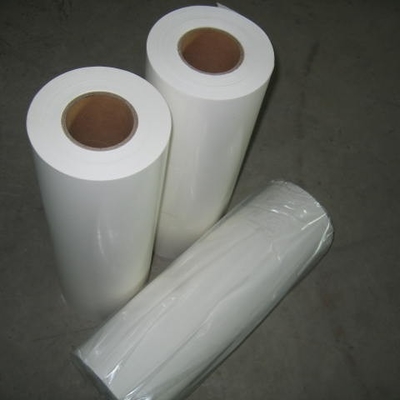

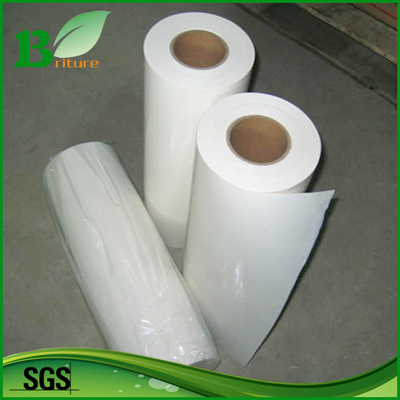

Packing image:
