Product Details:
|
| Available Monofilament Diameter (mm): | 0.06-1.00 | UL Temperature Index(℃): | 250 |
|---|---|---|---|
| Elongation: | 20%～40% | Modulus: | 3～6GPa |
| LOI Value: | 35 | Melting Point (℃): | 334～343 |
| Long-term Use Temperature Of(℃): | 250 | ||
| Highlight: | Friction Resistance Polyetheretherketone Fiber,Energy Industry PEEK Fiber,High Temperature Resistance PEEK Fiber |
||

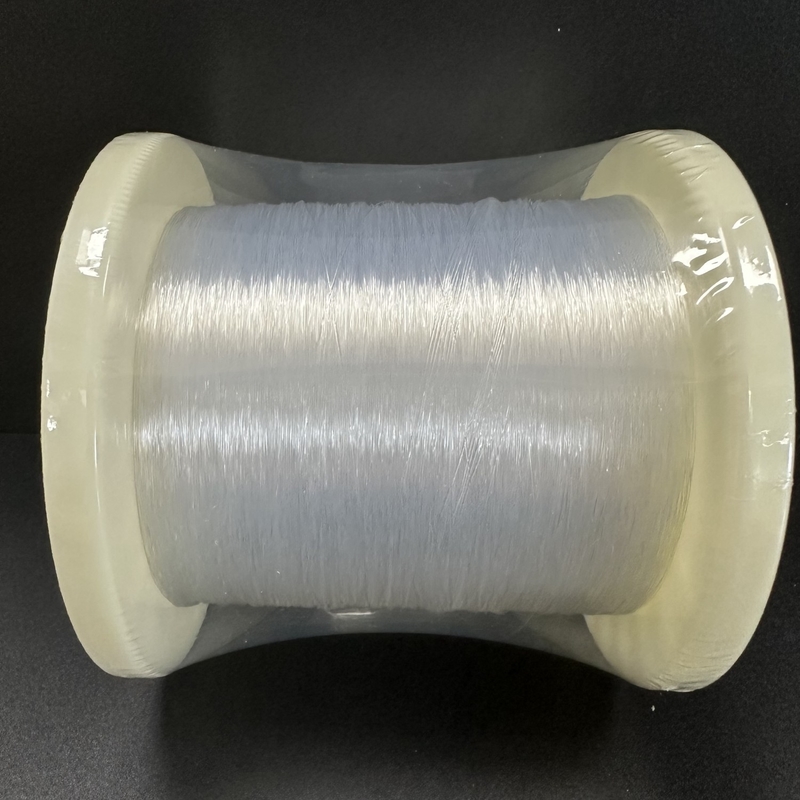

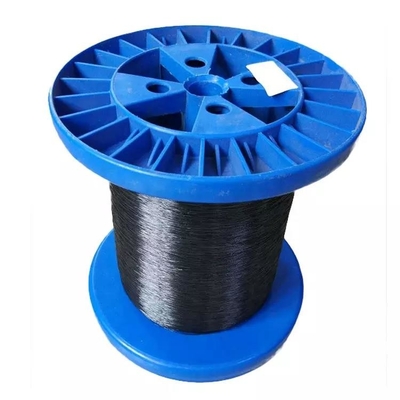

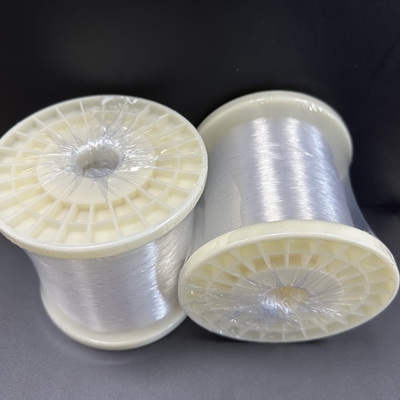

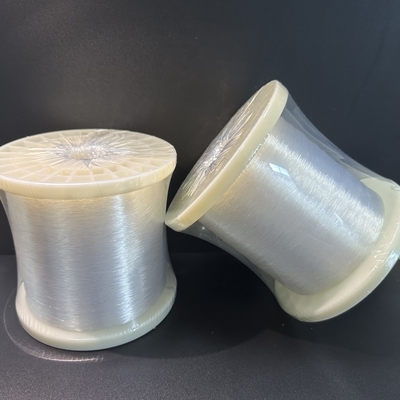

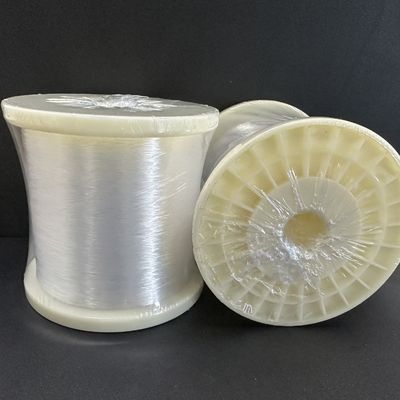

High Temperature Resistance And Friction Polyetheretherketone (PEEK) Fiber For The Energy Industry
| Available Monofilament Diameter (mm)+/-0.03 | |||||||||
| 0.06 | 0.07 | 0.10 | 0.15 | 0.20 | 0.25 | 0.28 | 0.30 | 0.35 | 0.38 |
| 0.40 | 0.45 | 0.50 | 0.55 | 0.60 | 0.70 | 0.80 | 0.90 | 1.00 | / |
| Available Multifilament Types (D/F) +/-20D | |||||
| 150/30 | 200/30 | 250/60 | 300/60 | 400/60 | 450/60 |
| 500/ 120 | 600/ 120 | 800/ 120 | 900/ 120 | 1000/ 120 | / |
Introduction and Application:
1. PEEK fiber has ether bond and ketone bond, he is a kind of all-aromatic fiber, its high temperature resistance, friction resistance and corrosion resistance is much higher than the conventional fiber.
2. Application:
First, It can used in aerospace,
Second, It can be used in composite materials for structural components required for weaponry
Third, It can be used in braided sheath for aerospace high-performance wire and cable, and dry canvas for paper
Forthly, It can make machinery in civil fields, heat-resistant filter cloth, Heat resistant and corrosion resistant textile tape
Lastly, It can be used in composite materials (mixed with glass fiber, carbon fiber) and high temperature resistant materials for the energy industry
