The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form

Certification
China Briture Co., Ltd. certification
China Briture Co., Ltd. certification
I'm Online Chat Now

The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form

The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form
The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form
The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form

Large Image :  The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form

Product Details:
Place of Origin: China
Brand Name: Briture
Model Number: 54mm
Payment & Shipping Terms:
Minimum Order Quantity: 2000kg
Price: USD2.50- USD3.00
Packaging Details: 1kg per PE bag, 10kg per plastic woven bag or water soluble paper bag.
Delivery Time: 2-3 weeks
Supply Ability: 20 00 TON

The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form

Description
Material: PP, Polypropylene Application: Concrete Reinforcement,industrial Cement Road.
Apperance: Grey Shelf Life: 2 Years
Length: 54mm Fiber Type: Bundle Form

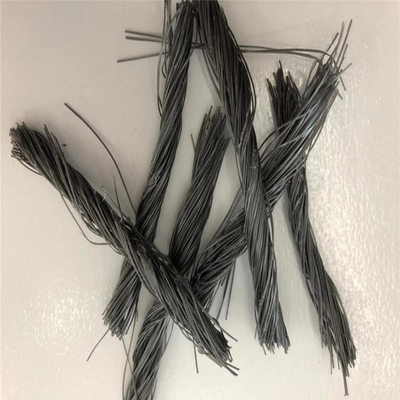

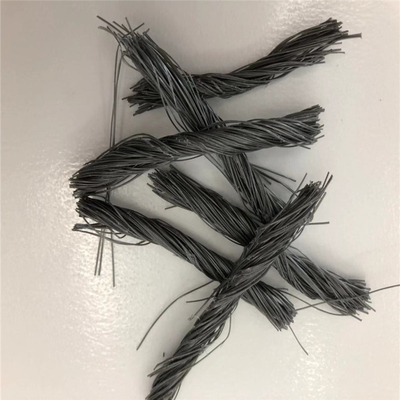

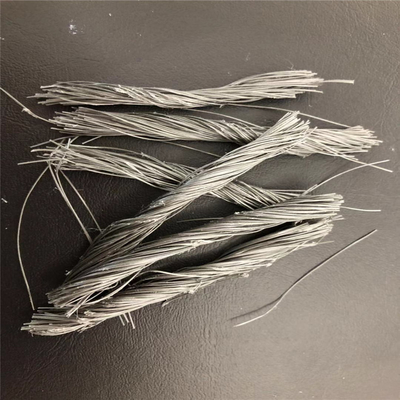

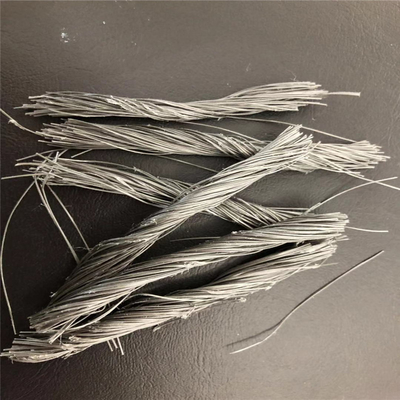

Polypropylene fiber bundle form

1. Ration design of the fiber concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per m3(volume ratio is 0.3%), reinforcement adding amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fiber has the same volume ratio to the concrete.



2. Length: 54mm for common crack-resistant requirement.



3. Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer fiber is recommend to combine with the PP fiber mesh form with the volume ratio of 1:1 (0.9kg fiber-mesh to per m3 of cement concrete).



4. Mixer Adoption: Double-axle horizontal compelling mixer is priority.



5. Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes, fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely mixed



6. Shaping & Maintenance:
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fiber concrete should be done same as the normal concrete.

Application:

1. The surface of road, bridge, runway and floor of the factory.

2. Wall and roof of the tunnel and mine.

3. Dam, river, bridge pier, dock and protection facilities.



Specification

Raw Material

Polypropylene

Fiber Type

Twisted Bunchy form

Length (mm)

40/48/50

Diameter (mm)

0.3+/-0.05

Strength (Mpa)

>560

Elastic Modulus (Mpa)

>5000

Break tesile ratio (%)

>15

Density

0.91


              Packing image

             The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form 0

             The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form 1

             The systhetic Fiber for reinforce the Concrete PP Fiber Bunchy Form 2
