Product Details:
|
Fiber Type: | Macro Fiber | Length: | 48,52,54,64mm. |
---|---|---|---|
Thickness (mm): | 1.30-1.40mm | Appearance: | Embossed |
Melt Point: | 170℃ | ||
Highlight: | PP macro synthetic fibers concrete,macro synthetic fibers concrete,macro fiber concrete reinforcement |

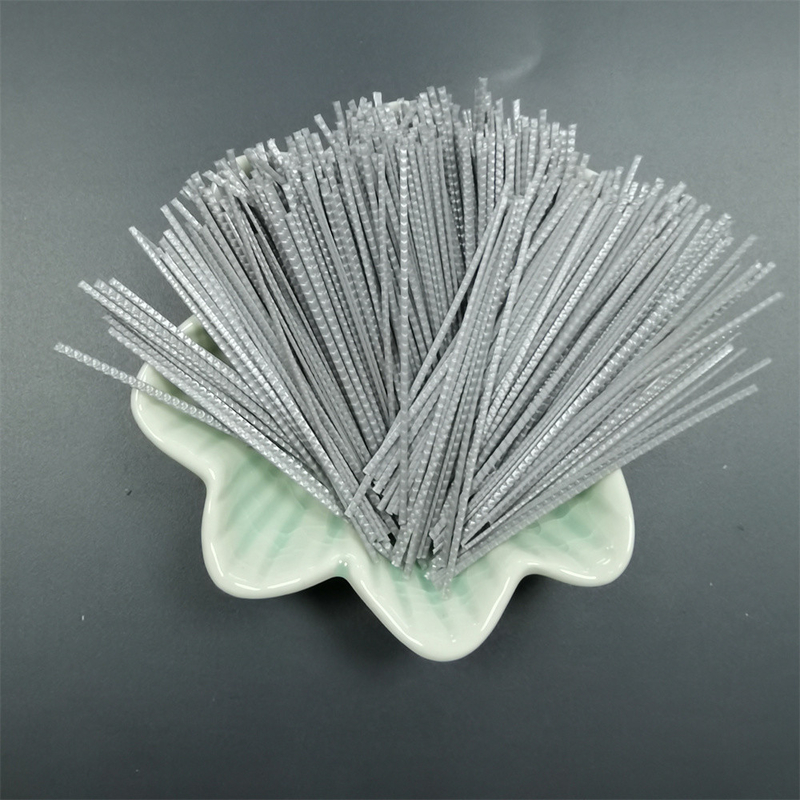

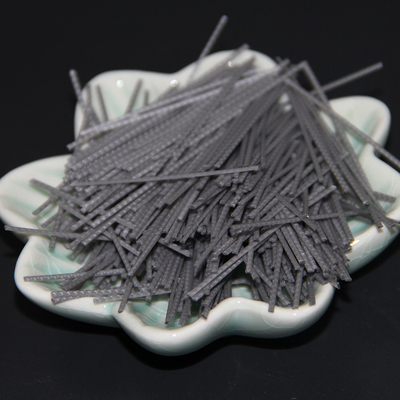

Synthetic Macro fiber
Product Description
Synthetic Macrofiber is made of Polypropylene and resin the steel imitation fiber has the advantages in high breaking strength, good dispersion, and strong grip strength. Polypropylene macro fiber (PP macrofiber)for concrete is one of pp fiber used for reinforcing concrete products and mainly used for structural fibers.
These fibers are wrapped in bundles of water-soluble film and packed in cartons. When used, just put the whole boxes of the fibers into concrete.
The cartons and film are dissolved in water and the fibers are evenly dispersed in the concrete mixture.
Available Length: 48mm, 54mm, 64mm...
Features
1. All grades of concrete to provide good anti - fatigue, anti - shrinkage, anti - seismic and good toughness.
2. Simple operation, not easy to group, safety, reasonable price, cost savings..
3. It can be used in highly corrosive, humid environment.
4. The strength of synthetic macro fiber is not as strong as that of steel fiber, but the experiment shows that under the same conditions, each
cubic meter concrete needs 3kg-6kg of synthetic macro fiber, while steel fiber needs 25kg-40kg. The results show that the concrete with
macro synthetic fiber has better toughness and anti-microcrack effect.
Proposed Dosage
The dosage rate is dependent on the actual application however the minimum dosage range is 3kg/ m3-6kg / m3
Typical Application
Shotcrete, concrete engineering, such as foundations, roads, Bridges, DAMS, especially in the deformation and toughness of the higher
requirements of the project, such as mining and water conservancy and hydropower projects.
Specification
Minimum Tensile Strength | ≥550MPa |
Modulus | ≥9000Mpa |
Fiber Dimension | L: 48mm/54mm/64mm;T: 0.55-0.60mm; W: 1.30-1.40mm |
Melt Point | 170℃ |
Density | 0.91g/cm3 |
Melt flow | 3.5 |
acid&alkali resistance | Excellent |
Moisture Content | ≤0% |
Appearance | Embossed |
Packing
5kg/ box, 1200-1300kgs/pallet, 12800kgs/1X20`FCL, 25600kgs/1X40`FCL
Packing image:
