Product Details:
|
Product Name: | Polypropylene Macro Synthetic Fiber | Fiber Type: | PP/Polypropylene Macro Fiber |
---|---|---|---|
Application: | Shotcrete, Concrete Engineering | Length: | 48mm,52mm,54mm. |
Appearance: | Embossed | Acid&alkali Resistance: | Excellent |
Highlight: | macro synthetic fiber embossed,macro synthetic fibers concrete embossed,48mm macro fiber concrete reinforcement |
Synthetic Macro fiber
Product Description

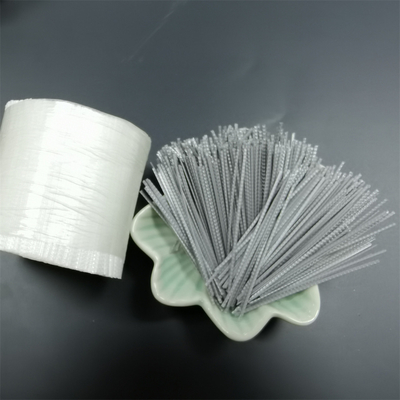

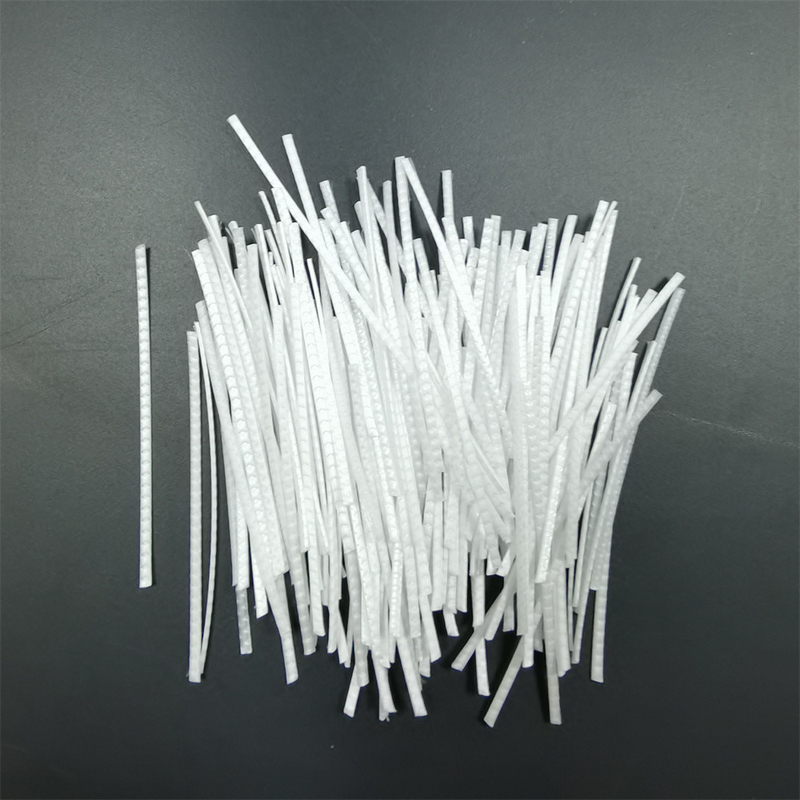

Briture Synthetic Macrofiber is made of Polypropylene. Polypropylene macro fiber (PP macrofiber)for concrete is one of pp fiber used for reinforcing concrete products and mainly used for structural fibers.
Provide good impact,fatigue,shrinkage control and ductility in all grade concretes.Cost saving,Is easier to use,to disperse and safe to handle.Can be used in highly corrosive circumstance.The surface has been embossed,which greatly improves the cohesive force between fibres and concrete,and also boosts shrinkage resistance and crack resistance.The toughness of macro synthetic fibre is less stronger than steel fibre.But test has shown slabs on grade and pre-cast concrete predominately require a dosage rate of between 25kg-40kg of steel fibres per cubic meter, in comparison,using between 3kg-10kg of macro synthetic fibre per cubic meter of concrete. Synthetic fibres achieve greater strength and ductility in the matrix.Estimating Data
These fibers are wrapped in bundles of water-soluble film and packed in cartons. When used, just put the whole boxes of the fibers into concrete.
The cartons and film are dissolved in water and the fibers are evenly dispersed in the concrete mixture.
Available Length: 48mm, 54mm, 64mm...
Features
1. All grades of concrete to provide good anti - fatigue, anti - shrinkage, anti - seismic and good toughness.
2. Simple operation, not easy to group, safety, reasonable price, cost savings..
3. Improve the supporting performance and bonding performance of concrete to produce effective secondary strengthening effect; Provide high residual strength of concrete and improve the durability of concrete;
4. Coarse fiber is most suitable for shotcrete, which can reduce rebound, reduce cost, form a thicker shotcrete layer, significantly improve bending strength, easy pumping and will not damage mechanical equipment.
5. The strength of synthetic macro fiber is not as strong as that of steel fiber, but the experiment shows that under the same conditions, each cubic meter concrete needs 3kg-6kg of synthetic macro fiber, while steel fiber needs 25kg-40kg. The results show that the concrete with macro synthetic fiber has better toughness and anti-microcrack effect.
Proposed Dosage
The dosage rate is dependent on the actual application however the minimum dosage range is 3kg/ m3-6kg / m3
Typical Application
Shotcrete, concrete engineering, such as foundations, roads, Bridges, DAMS, especially in the deformation and toughness of the higher
requirements of the project.
Guideline of use
The fibres are wrapped with water-soluble film and uniquely packaged in paper boxes.Then just throw the whole boxes of fibres into the concrete mixture, the boxes and film then dissolve within seconds, leaving the fibres to disperse evenly throughout the mixture.
Specification
Minimum Tensile Strength | ≥550MPa |
Modulus | ≥9000Mpa |
Fiber Dimension | L: 48mm/54mm/64mm;T: 0.55-0.60mm; W: 1.30-1.40mm |
Melt Point | 170℃ |
Density | 0.91g/cm3 |
Melt flow | 3.5 |
acid&alkali resistance | Excellent |
Moisture Content | ≤0% |
Appearance | Embossed |
Packing
5kg/ box, 1200-1300kgs/pallet, 12800kgs/1X20`FCL, 25600kgs/1X40`FCL
