Product Details:
|
| Product Name: | UHPC Special Synthetic Fibre | Usage: | Reinforced Concrete, Shotcrete |
|---|---|---|---|
| Material: | Polyvinyl Alcohol, PVA | Fibre Dimension: | 40 Denier, 0.2mm |
| Highlight: | 40 Denier UHPC fibers,0.2mm UHPC Special Synthetic Fibre,Concrete UHPC fibers |
||

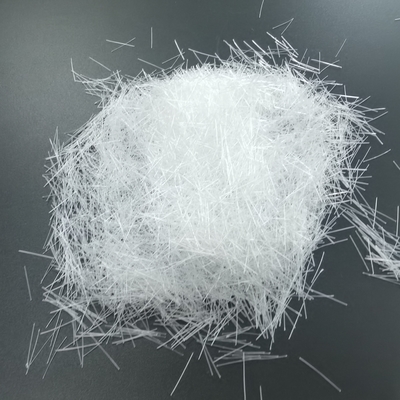

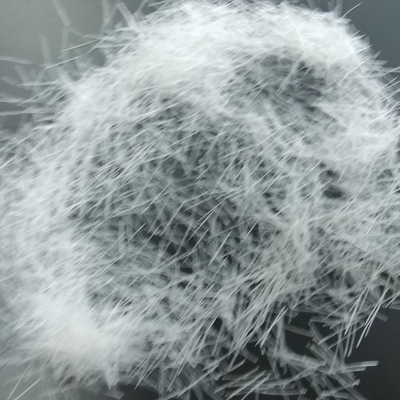

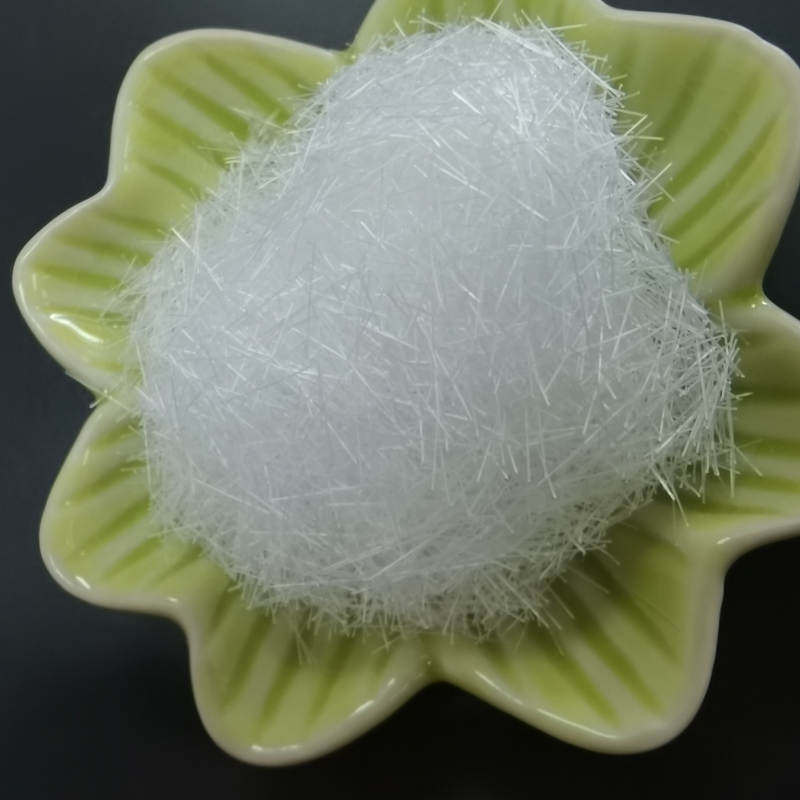

UHPC Special Synthetic Fibre
Product Description
UHPC fibers are unique in their ability to create a fully-engaged molecular bond with mortar and concrete that is 300% greater than other fibers.
UHPC fiber products are 40 denier, monofilament PVA fibers for use in fiber reinforced concrete, stucco, shotcrete and precast. UHPC Fiber is
specifically designed for use in concrete products for the purpose of controlling plastic shrinkage, thermal cracking and improving abrasion resistance.
It can be used in all types of concrete. Synthetic fibers help the concrete at early ages, which is especially beneficial where stripping time and handling is important.
Applications
Benefits
|
No rusty |
Reduces the formation of plastic shrinkage cracking in concrete. |
| Self compact |
Cost saving, easier to use,to disperse and safe to handle. |
|
Excellent dispersity |
Improves impact, shatter and abrasion resistance of concrete. |
| Light and artistic |
Prevent water seepage and prolong the life of the building. |
| Colourfull |
Can be used in highly corrosive circumstance. |
Technical Information
| Fibre Dimension | D:0.2mm; L:6/12mm |
| Minimum Tensile Strength | >950MPa |
| Modulus | >12GPa |
| Elongation at break | ≤30% |
| Density | 1.4g/cm3 |
| Acid &Alkali Resistance | Excellent |
| Moisture Content | ≤0.1% |
| Appearance | Transparent monofilament |
Guidelines for use
Dosage: the usual dosing amount is 5.0-50.0kg /m3( the corresponding volume dosing amount is 0.4-4.0%).
Length: The length of UHPC should be 6-12mm. According to different thicknedd of components.
Stirring: After mixing the UHPC powder and water to make the slurry evenly, add the fibers, and then stir for 2 to 4 minutes, subject to the
uniform dispersion of the fibers.
Curing: The construction and curing process of UHPC after adding fiber is exactly the same as the system without fiber
Packing
10 or 20kg/big bag, 700kg/pallet , 7000kg /20 ‘container , 14000kg / 40 ‘container
