Product Details:
|
| Product Name: | Glued Hooked End Steel Fiber | Application: | 1.Mortar Reinforcement 2. Shotcrete, Tunnel And Mine |
|---|---|---|---|
| Strength: | 1100 Mpa, 1800 Mpa. | Shape: | End Hook, Glued, Loose |
| Length: | 30mm - 60mm | Diameter: | 0.55 Mm, 0.75mm, 0.90mm |
| Highlight: | 30mm Hooked End Steel Fiber,1100 Mpa Hooked End Steel Fiber,Glued Steel Fiber Hooked End |
||
Description

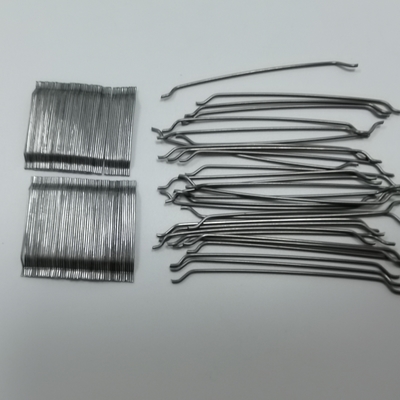

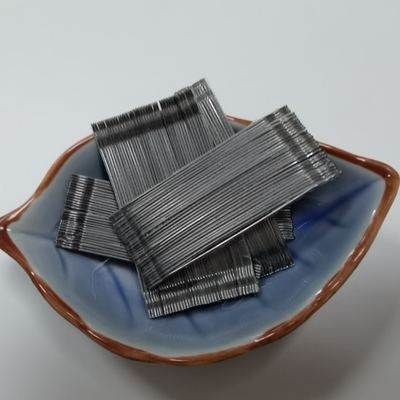

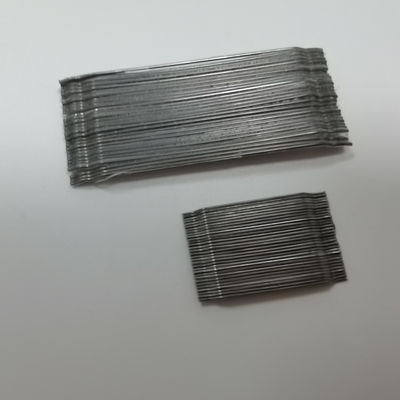

Hooked end steel fibre is made of cold-drawn wire. In the concrete mixture, add right amount steel fibres can be mixed into a kind of special jetting as well as casting concrete, namely steel fibre reinforced concrete. Compared with general concrete, steel fibre concrete has a great improvement in tensile strength, flexural strength, abrasion resistance, impact resistance, fatigue resistance, toughness, crack resistance and antiknock performance.
Application
1. Mortar reinforcement
2. Ground, bridge, highway pavements dam
3. Railway sleeper
4. Shotcrete, tunnel and mine
Benefits
1. Improve structural strength
2. Reduce steel reinforcement requirements
3. Reduce crack widths and control the crack widths tightly, thus improving durability
4. Improve impact- and abrasion-resistance
5. Improve freeze-thaw resistance
Specification
| Type | Diameter(mm) | Length(mm) | LD Ratio | Tensile strength |
| 80/60 | 0.75 | 60 | 80 | 1100Mpa min |
| 65/60 | 0.90 | 60 | 85 | 1000Mpa min |
| 80/50 | 0.62 | 50 | 80 | 1100Mpa min |
| 65/35 | 0.55 | 35 | 65 | 1200Mpa min |
| 80/60 | 0.75 | 60 | 80 | 2000Mpa min |
| 65/60 | 0.90 | 60 | 65 | 1800Mpa min |
| 65/60 | 0.90 | 60 | 65 | 1800Mpa min |
Packing
25kg/Bag, 1200kg/Pallet, 24 T/ 20' Container. Other packing way according to customer's requirements.
