L/D 80 Tensile Strength 1800Mpa Glued Hooked End Steel Fibre 80/60 For Mine Tunnel

Large Image : L/D 80 Tensile Strength 1800Mpa Glued Hooked End Steel Fibre 80/60 For Mine Tunnel

Product Details:

Place of Origin:	China
Brand Name:	Briture
Certification:	CE；ISO
Model Number:	80/60

Payment & Shipping Terms:

Minimum Order Quantity:	24000kgs
Price:	negotiable.
Packaging Details:	25KG/bag
Delivery Time:	2-3weeks
Supply Ability:	200000 TON ANNUAL

Contact Now

L/D 80 Tensile Strength 1800Mpa Glued Hooked End Steel Fibre 80/60 For Mine Tunnel

Description

Product Name:	Steel Fiber	Shape 1:	Loosed Hooked End
Shape 2:	Glued Hooked End	Packing:	25kg /bag
L/D:	80/60	Length:	60mm
Tensile Strength:	1800Mpa. Min.
Highlight:	Mine Tunnel Hooked End Steel Fibre , Hooked End Steel Fibre 80/60 , 1800Mpa Hooked End Steel Fibers

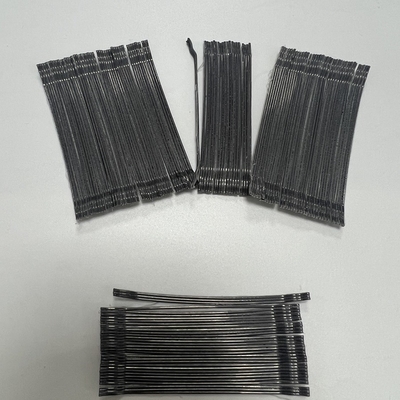

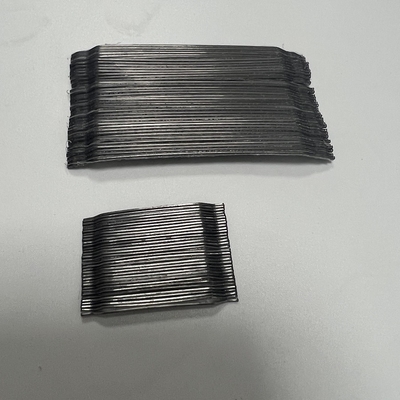

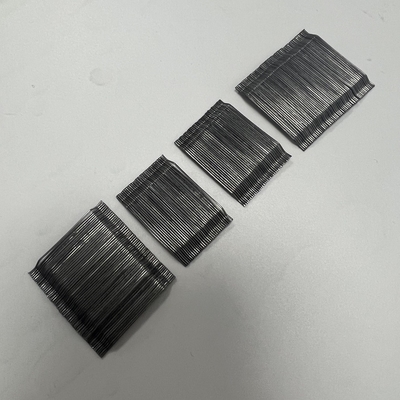

Glued Hooked End Steel Fiber

Production Description

In the concrete mixture, add right amount steel fiber can be mixed into a kind of special jetting as well as casting concrete, namely steel fiber reinforced concrete.

Compared with general concrete, steel fiber concrete has great improvement in tensile strength, flexural strength, abrasion resistance, impact resistance, fatigue resistance, toughness,crack resistance and antiknock performance, because large number of very minute steel fiber is evenly dispersed in the concrete and has a large contact area with concrete, therefore, concrete strength is improved in all.

Function

(1) greatly improve concrete bonding and tensile strength

(2) improve mechanical performance concrete

(3) prevent the damage to the concrete

(4) decrease the danger from crack of the concrete

(5) provide exceptional load stability and durability

Advantage:

(1)very suitable for high temperature firebrick

(2)high intensity

(3)high anti-bending

(4)high solid riveting force

(5)anti-compressive

(6)good comprehensive effect

Specification



			Model
			length (MM)
			Diameter (MM)
			Draw Ratio(L/D)
			Tensile Strength
			Type


			80/60
			60
			0.75
			80
			1100Mpa min.
			Glued


			80/60
			60
			0.75
			80
			1800Mpa min.
			Glued


			80/50
			50
			0.62
			80
			1200Mpa. min.
			Glued


			65/35
			35
			0.55
			65
			1200Mpa min.
			Glued


			65/60
			60
			0.9
			65
			1000Mpa. /1800Mpa min.
			Loose or Glued



Application

1) Ready mixed concrete

2) Precast concrete

3) Self Compacting Concrete

4) Shortcrete
5)Mortar reinforcement

6) Flooring

7) Overlays

8) Structural applications
9)Ground, bridge, highway pavements dam 10)Railway sleeper
11)tunnel and mine

Packing

25KG net per bag, 24MT/1*20 'FCL with pallet
