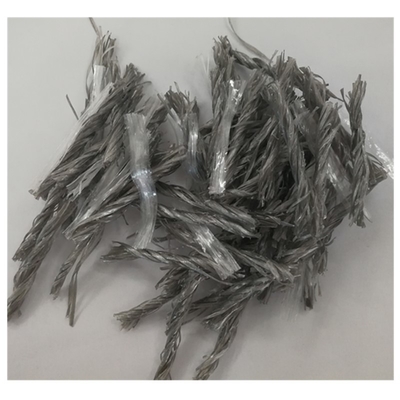

54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing

Certification
China Briture Co., Ltd. certification
China Briture Co., Ltd. certification
I'm Online Chat Now

54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing

54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing
54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing 54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing 54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing

Large Image :  54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing

Product Details:
Place of Origin: China
Brand Name: Briture
Certification: CE;ISO
Model Number: Hybrid
Payment & Shipping Terms:
Minimum Order Quantity: 1000KG
Price: negotiable.
Packaging Details: 1kg PER PE bag ; 10KG per woven plastic bag
Delivery Time: 2-3weeks
Supply Ability: 2000 TON ANNUAL

54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing

Description
Raw Material: PP Fiber TYPE: Hybrid
Length: 54mm Appearance: Twisted Bunchy
Break Strength: 600Mpa Color: Grey
High Light:

54mm Mixed Polypropylene Fiber

,

Concrete Mixed Polypropylene Fiber

,

Mesh Form Polypropylene Fiber

54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing

Products Description

Introduction

1. This fiber is used to instead of steel fiber for reinforcement to cement concrete. Compared with steel fiber, it has the
advantage of easy dispersing and blending, no damage to the mixing equipment, etc

2. The rigid polymer fiber is used polypropylene as its raw material, produced the rough surface treatment by special parallel thread extruding & twisting process. It has high break strength, better dispersion and strong combining ability, will be widely used to instead of steel fiber to reinforce the cement concrete and crack-resistant.

Specification
Product name PP Fiber Bunchy Form
Diameter 0.3+/-0.05 mm
Length 48mm, 52mm, 54mm...
Tensile Strength > 600Mpa
Crack Elongation > 15%
Melting Point 160-170
Elastic Modulus > 5000Mpa
Acid & Alkali Resistance Strong



Apply Instruction:

1. Ration design of the fiber concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per m3 (volume ratio is 0.3%), reinforcement adding amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fiber has the same volume ratio to the concrete.

2. Length: 54mm for common crack-resistant requirement.

3. Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer fiber is recommend to combine with the PP fiber mesh form with the volume ratio of 1:1 (0.9kg fiber-mesh to per m3 of cement concrete).

4. Mixer Adoption: Double-axle horizontal compelling mixer is priority.

5. Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes, fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely mixed

6. Shaping & Maintenance:
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fiber concrete should be done same as the normal concrete.
54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing 054mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing 154mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing 2

Application

1. The surface of road, bridge, runway and floor of the factory.

2. Wall and roof of the tunnel and mine.

3. Dam, river, bridge pier, dock and military protection facilities.

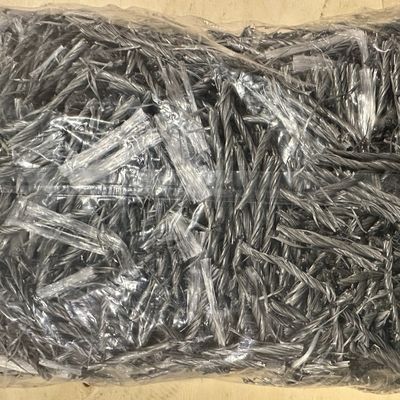

Product packaging
1)small PE bag of 1kg each each and then 10kgs each woven bag, 6MTS/1X20`FCL and 13MTS/1X40`HQ without pallet
2)small paper bag of 1kgs each and then 10kgs each box, about 3.6MTS/1X20`FCL or 9MTS/1X40`HQ with pallet.

54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing 3
54mm Mixed Polypropylene Fiber Twister And Mesh Form For Concrete Reinforcing 4
