Product Details:
|
Product Name: | PP Fiber Twisted Bunchy Form | Application: | Industrial Floor, Concrete |
---|---|---|---|
Color: | White, Grey | Length: | 51mm, 54mm |
Material: | Polypropylene | ||
Highlight: | High Break Strength PP Fiber 51mm,Polypropylene Fiber Twisted Bunchy,Reinforcement Cement Polypropylene Fiber |

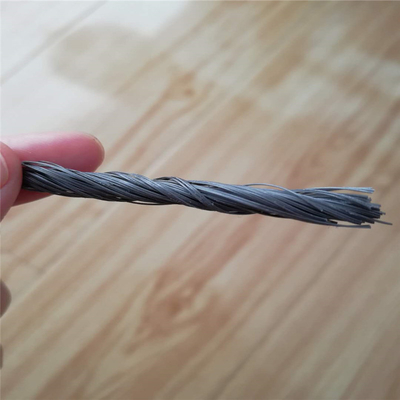

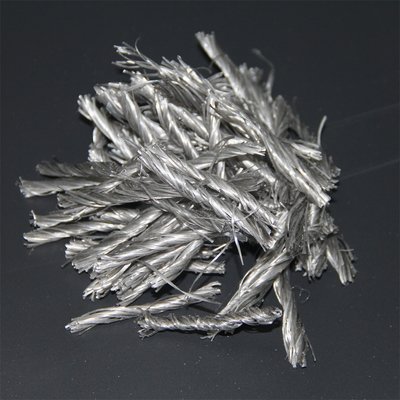

PP Fiber Twisted Bunchy form
APPLYING INSTRUCTION:
1. Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per sqm (volume ratio is 0.3%), reinforcement adding amount is
5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2. Length: 54mm for common crack-resistant requirement.
3. Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer fiber is recommend to combine with the PP fiber mesh form with the volume ratio of 1:1(0.9kg fiber-mesh to per sqm of cement concrete). .
4. Mixer Adoption:
Double-axle horizontal compelling mixer is priority.
5. Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes, fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber com-pletely mixed.
Specification
Raw material | PP+PE |
Modulus (Mpa) | 5000min |
Fiber Length (mm) | 54 |
Density | 0.91g/cm3 |
fiber diamter | 0.3±0.05 |
acid&alkali resistance | Excellent |
Break tensile ratio | 15%min |
Break strength (Mpa) | 560min. |
Application:
1. The surface of road, bridge, runway and floor of the factory.
2. Wall and roof of the tunnel and mine.
3. Dam, river, bridge pier, dock and military protection facilities.
Packing
1kgs per bag, 10kgs per carton.
Quantity: 400CTNS/20`FCL;
828CTNS/40`FCL;
930CTNS/40`HQ
or
500g, or 1kg net per PE bag
10kgs per plastic woven bag
5000kgs/1X20`FCL without pallet
13000kgs/1X40`HC without pallet
Packing image:
