Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits

Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits
Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits

Large Image :  Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits

Product Details:
Place of Origin: China
Brand Name: Briture
Certification: ISO
Model Number: filament
Payment & Shipping Terms:
Minimum Order Quantity: 20kgs
Price: USD 300-400/KG FOB Shanghai
Packaging Details: about 2kgs per roll
Delivery Time: 2-3 weeks
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 10000 KGS PER YEAR

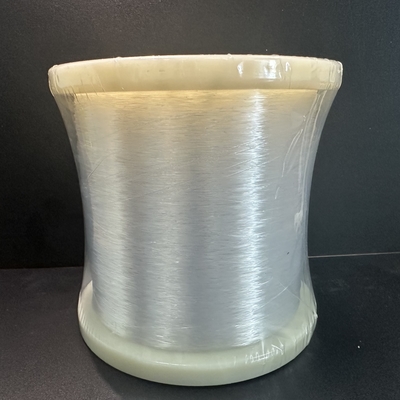

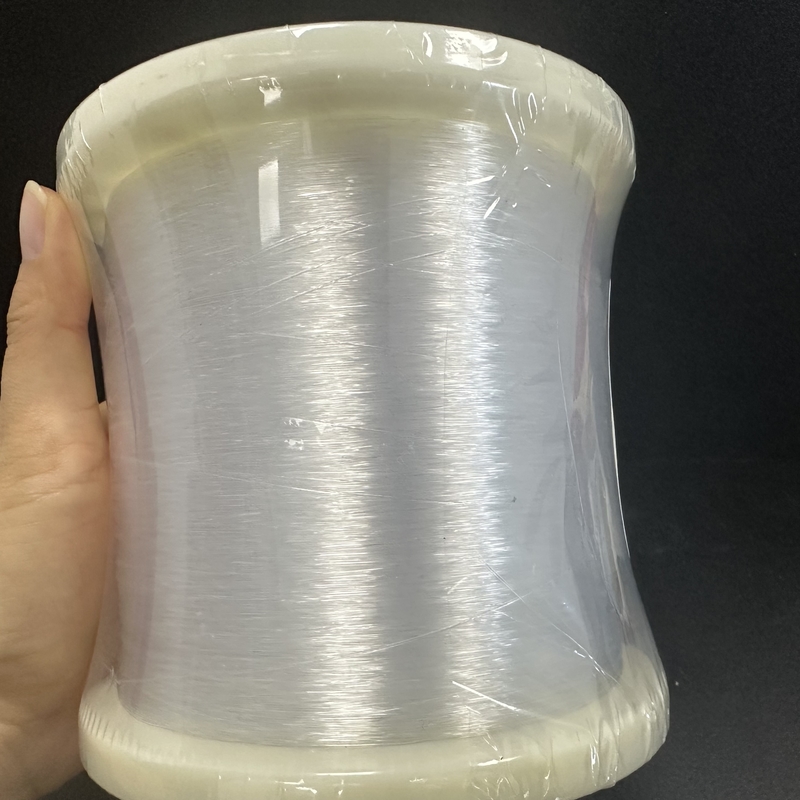

Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits

Description
Product Name: PEEK Fiber Application: Wires For Electronic Circuits; Conveyor Belt
DIAMETER, Mm: 0.10-1.00mm TENACITY,CN/DTEX: ≥3.0
BREAKING LOAD N: ≥19
High Light:

Monofilament Filament PEEK Fiber

,

Polyetheretherketone PEEK Fiber

,

Electronic Circuits PEEK Fiber

PEEK Fiber monofilament

PEEK Fiber monofilament: diameter 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1mm.

Product description:
Peek filament of high flexibility and high strength is produced through continuous extrution molding.It is of good dimensional stability and can be molding without break for thousands of meters,which is widely applied in 3D print industry.


PEEK multifilament Decitex/Fils (Denier/Fils): 75/15F (68/15) ; 115/15F (104/15);275/15F (248/15); 150/30F (135/30) ;230/30F (207/30) ; 550/30F (495/30) ; 190/36F; 238/36F; 1230/72F (1107/72); 1230/144F (1107/144)
We can produce other decitex and filament count yarns according to your requirement, our dtex count ranging is from 125 dtex to 1230 dtex with different shrinkage, elongation and tenacity characteristics.

Application:

Polyetheretherketone fiber is a wholly aromatic fiber with the presence of ether bonds and ketone bonds, which makes the fiber's high temperature resistance, friction and corrosion resistance much higher than conventional fibers. Polyetheretherketone fiber is mainly used in aerospace, composite materials for structural components required for weaponry, braided sheath for aerospace high-performance wire and cable, and dry canvas for papermaking machinery in civil fields, heat-resistant filter cloth, Heat resistant and corrosion resistant textile tape, Composite materials (mixed with glass fiber, carbon fiber), high temperature resistant materials for the energy industry.

PEEK fiber is used as a joint for the spiral winding of the papermaking process or as a corner reinforcement for the mesh polyester felt. It mainly enhances and anti-wear, and can effectively improve the service life of the belt. Polyetheretherketone fiber itself is clean and non-contaminating to other contacts, easy to sterilize, polyetheretherketone fiber is also made into mesh conveyor belt for food processing and pharmaceutical industries.

Weaving a fine woven fabric (diameter polyetheretherketone monofilament below 0.15mm), resistant to oil, corrosion, and used in fuel filters for aircraft and automobiles. Weaving with pressure filter fabric (diameter 0.15 mm ~ 0.30 mm monofilament, can also use polyetheretherketone multifilament) can be used in the field of chemical production, to help dewatering powder slurry or filter hot melt adhesive; also used in the medical field, in Used in dialysis, diagnostic equipment or chromatography equipment to ensure purity.

Specification:

Item standard
DIAMETER, mm 0.25±0.02mm
BREAKING LOAD N ≥19
TENACITY,CN/DTEX ≥3.0
BREAKING ELONGATION,% 20-40
SHRINKAGE 250ºC,% ≤5.00

Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits 0Polyetheretherketone PEEK Fiber Monofilament Filament For Wires For Electronic Circuits 1
