Product Details:
|
| Fiber Name: | Peek Fiber | Peek Fiber Dia: | 0.06,0.07,0.10~1.00 Mm |
|---|---|---|---|
| Peek Fiber Available Multifilament Types: | 150/30,250/60,500/120,1000/120~ | ||
| Highlight: | High Temperature Resistant Peek Fiber,Peek Fiber 1.00mm,Energy Industry Polyetheretherketone Fiber |
||

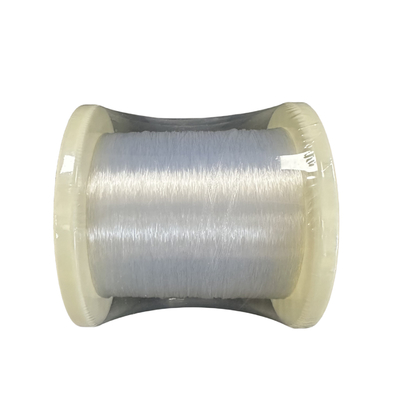

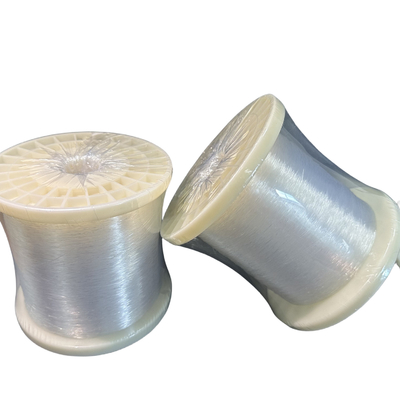

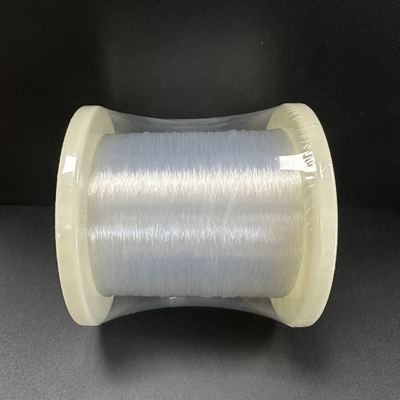

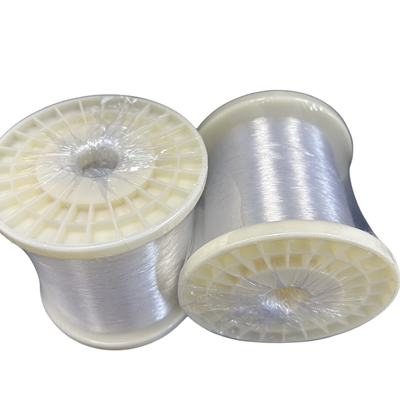

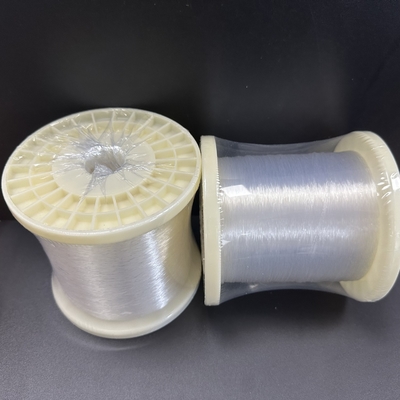

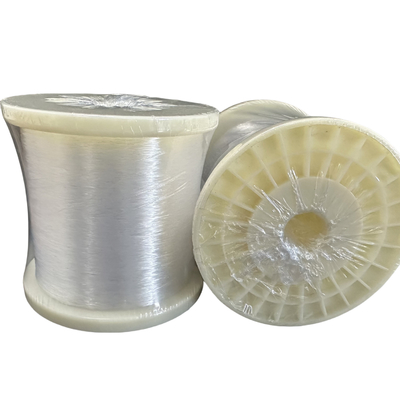

0.06-1.00mm PEEK Fiber As High Temperature Resistant Materials For The Energy Industry
Description:
Polyetheretherketone (PEEK) is a thermoplastic poly-condensate available in multifilament, monofilament, and spun yarns.
| Available Monofilament Diameter (mm)+/-0.03 | |||||||||
| 0.06 | 0.07 | 0.10 | 0.15 | 0.20 | 0.25 | 0.28 | 0.30 | 0.35 | 0.38 |
| 0.40 | 0.45 | 0.50 | 0.55 | 0.60 | 0.70 | 0.80 | 0.90 | 1.00 | / |
| Available Multifilament Types (D/F) +/-20D | |||||
| 150/30 | 200/30 | 250/60 | 300/60 | 400/60 | 450/60 |
| 500/ 120 | 600/ 120 | 800/ 120 | 900/ 120 | 1000/ 120 | / |
Introduction and Application:
1. PEEK fiber is a wholly aromatic fiber with the presence of ether bonds and ketone bonds, which makes the fiber's high temperature resistance, friction and corrosion resistance much higher than conventional fibers.
2.PEEK fiber is a durable fibre with a high tensile strength, which is widely used in wire harnesses and hose braiding applications. PEEK fibre can be used in the higher temperature regions (up to 260°C) and produces excellent low smoke and gas emissions. The lightweight material has superior friction and wear properties. The high tensile strength, combined with the light weight of PEEK fibre, makes it an excellent choice for many applications, including Aerospace. PEEK fibre can be used to create a braided sleeve or as an additional jacket which is both stretchable and flexible. The woven material can be placed over an existing cable assembly in order to protect against abrasion and additionally offers an improved chemical wear resistance. PEEK fibre is widely used for conveyor belts, or as a component in filters.
3.PEEK fiber is mainly used in aerospace, composite materials for structural components required for weaponry, braided sheath for aerospace high-performance wire and cable, and dry canvas for paper
making machinery in civil fields, heat-resistant filter cloth, Heat resistant and corrosion resistant textile tape, Composite materials (mixed with glass fiber, carbon fiber), high temperature resistant materials for the energy industry
Certification:
